DIY Dolly / Cameradolly for use with timelapse (motorized)
Table of content
Introduction
Timelapse movies are something special. They capture events that take place over a long space of time and then show them all again in a few seconds or minutes.
To make the movies even more interessting, you can add a slight movement to the video. To do so, you need a device which can move the camera very regular and precise.
In this tutorial I will show you, how I built my Camera dolly, and which problems you have to solve.
Top
The plan
It is very important to have a plan, before you begin to build your DIY Dolly. While planning you spot all the problems you have so solve. After finishing the plan, you know exactly which parts you need and where you have to do what :-)
That's why I decided to create a 3D-Animation which shows how I wanted to build my Dolly:
You'll need the Adobe Flash Player and activated Javascript to watch this video.
This video shows a 3D animation of my DIY Camera Dolly.
Anyone who thinks "Hey, I know this one" is right. It has a strong similarity to the famous Dynamic Perception Dolly. But when I was building my dolly, the DP was not in stock yet. And I wanted a dolly that you are able to take with you, wherever you go - even if you fly in a plane.
Top
Necessary parts
So, which parts did I use tu build my dolly?
First of all the parts that I ordered from "item" in Germany. I build the rail with these parts:- 4x Aluminium Profile 80x20mmx600mm
- 8x Wellenklemmprofil 600mm
- 8x Welle D6
- 4x Abstreif- und Schmiersystem
- 2x Lagereinheit 5 D6 z
- 2x Lagereinheit 5 D6 e
- 12x Automatik-Stoß-Verbindungssatz
- 24x Nutenstein 5 St M4
For building the mechanical actuation I used parts from Meadler in Germany:
- 1x HTD-Zahnriemenrad Teilung 5M 26 Zähne
- 2x Klemmplatte für Zahnriemen Profil HTD 5M
- 3m Zahnriemen Profil HTD 5M
I ordered the stepper motor and the gear from Nanotec in Germany:
- ST4118S0706 Schrittmotor
- Planetengetriebe 1:60 GPLE40-3S-60
- SMC11 Schrittmotorsteuerung
Top
Dolly in action

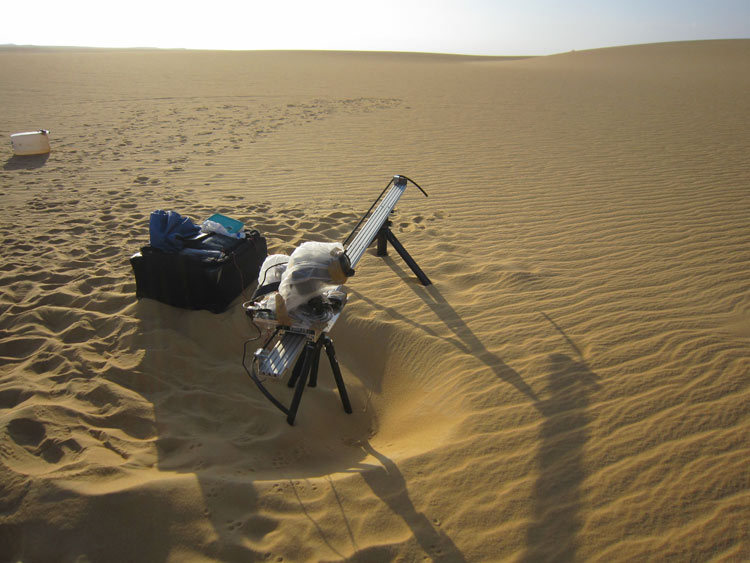

I already used the dolly in Egypt. Some impressions:
To be continued..
